SB5100 Cable modem

Motorola SB5100 surfboard
The CPU of the board uses BCM3348. The tool to debug the CPU is EJTAG (DMA).

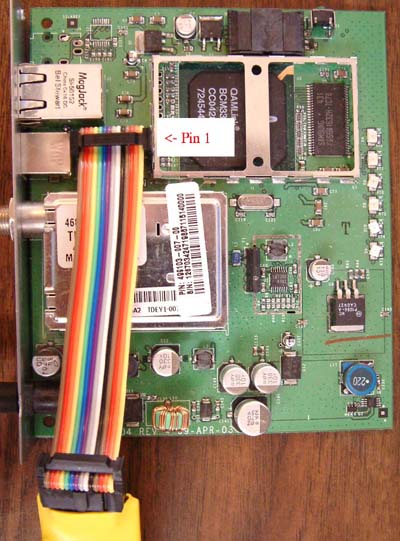

Picture showing JTAG is connected
Flash One 2MB 28F160C3
Firmware 2MB $9FC00000-$9FDFFFFF
RAM 16MB $80000000-$81000000



Definition in usbjtag.def Commands (usbjtag 0.09. SB5100 Test 0.03):
Name=SB5100
DLL=SB5100.dll
Memory=Ram,0,0x80000000,0x800000
// Boot loader
Memory=Boot,1,0x9fc00000,0x8000
// configuration
Memory=cfg,1,0x9fc08000,0x8000
// first copy of firmware
Memory=Image0,1,0x9fc10000,0xf0000
// second copy of firmware
Memory=Image1,1,0x9fd00000,0xf0000
// log data
Memory=log,1,0x9fdf0000,0x10000
Programram=0x80400000
// watch dog
Init=0xfffe0224,0
// initialize chip set
Init=0xfffe2300,0x1a
Init=0xfffe2304,0
Init=0xfffe2308,0x8040
Init=0xfffe230C,3
Init=0xfffe2310,0x4824
Endian=Big
IRLength=5
Protocol=EJTAG
DMA=Yes
ProbTrap=1
Backup firmware
getram 9fc00000 200000
save 9fc00000 200000

Program whole firmware. (Should not interrupt)
detect
ldram 9fc00000
program 9fc00000 200000
cmpram 9fc00000 200000

cmpram is optional. It can be used after program only when DMA is supported.After that you should see DEBUG ON. You should see "Compair data OK"


Program Sigma
detect
ldram boot select the sigma boot
ldram image0 Select sigma application
program boot
program image0

Rescue SB5100. When box not fire up. Normal programming will not work. First need to program boot
(if method 1 does not work use method 2)
Method 1.
detect
ldram 9fc00000(Select the backed up file)
poke fffe230c 3
poke fffe2304 0
poke fffe2300 a
poke fffe2300 9
poke fffe2300 9
poke fffe2300 9
poke fffe2300 9
poke fffe2300 9
poke fffe2300 9
poke fffe2300 9
poke fffe2300 9
poke fffe2300 1c
program 9fc00000 200000
cmpram 9fc00000 200000
if cmpram failed, power off and on the box again and do
delect
program 9fc00000 200000
cmpram 9fc00000 200000

Method 2.
detect
ldram boot (Select proper boot file)
erase boot
sprogram boot (Slow programming)
Power off and on SB5100
detect
ldram 9fc00000(Select the backed up file)
program 9fc00000 200000
cmpram 9fc00000 200000
