| ECU Chrysler BDM |

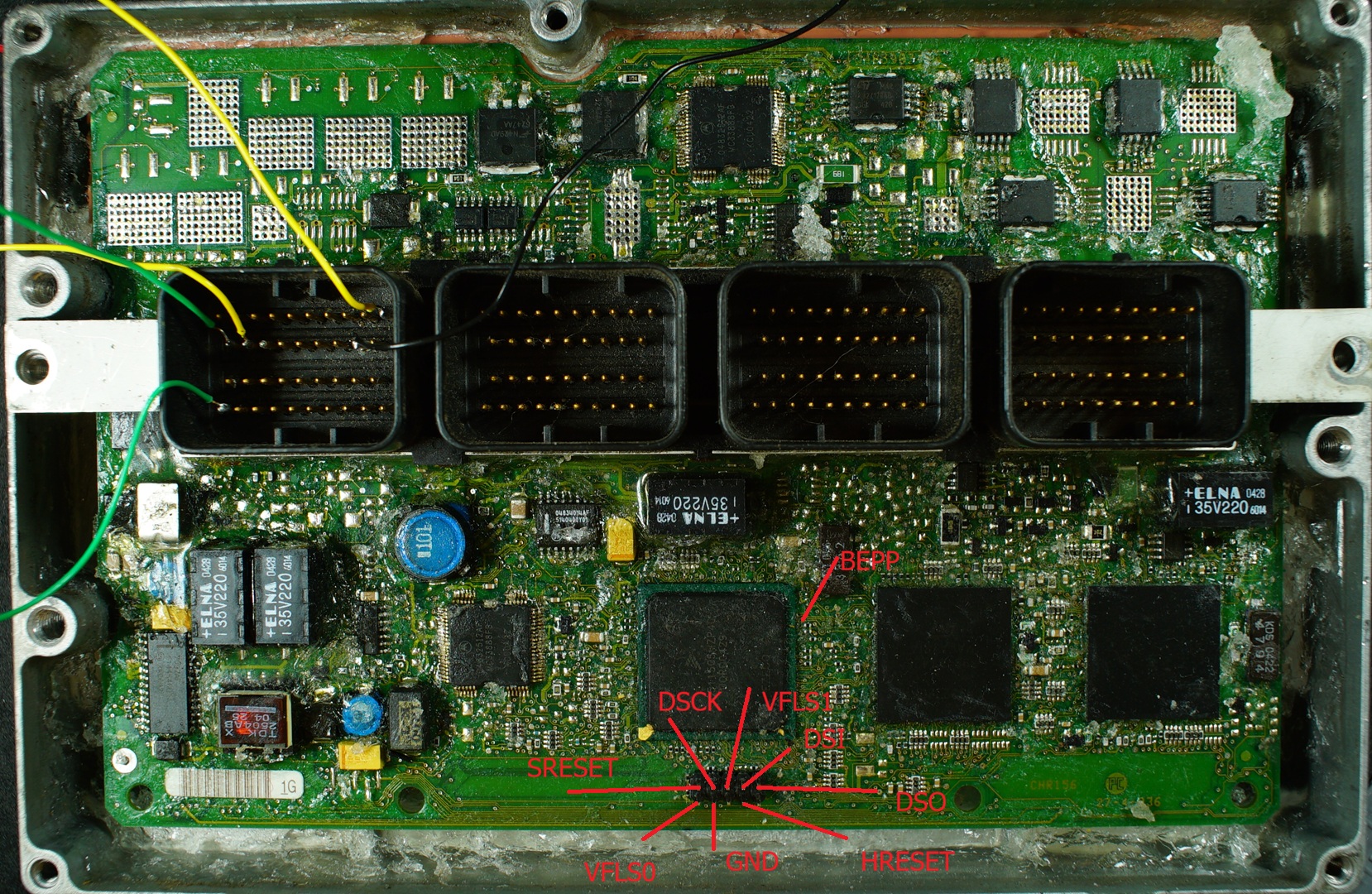

| BDM connection |
| BDM connector of u_link NT | Chrysler |
| Pin 3(Gray) | Pin 1(VFLS0) |
| Pin 2(White) | Pin 3(GND) |
| Pin 5(Blue) | Pin 7(HRESET) |
| Pin 4(Purple) | Pin 2(SRESET) |
| Pin 6(GREEN) | Pin 4(DSCK) |
| Pin 9(Red) | Pin 6(VFLS1) |
| Pin 10(Brown) | Pin 8(DSI) |
| Pin 8(Orange) | Pin 10(DSO) |
| Pin 1(Black) add 120ohm | BEPP |
