ECU P08 BDM

CPU MC6833X BCM.

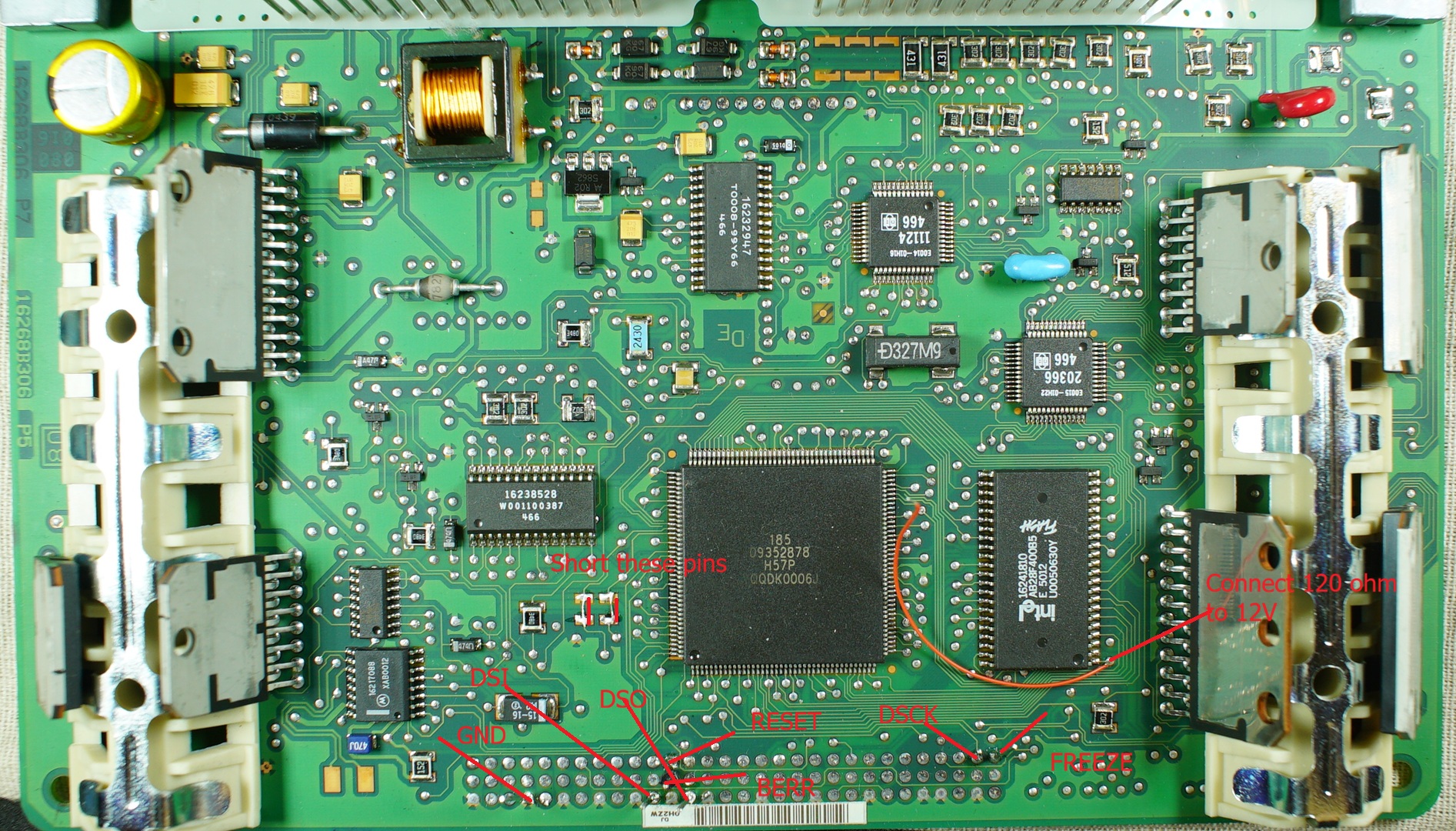

BDM connection

Connection

BDM connector of u_link NT	P08
Pin 4(Purple)(Do not connect for slave)	BERR (Do not connect for slave)
Pin 2(White)	GND
Pin 6(Green)	DSCLK
Pin 3(Gray)	FREEZE
Pin 5(Blue)	RESET
Pin 10(Brown)	DSI
Pin 8(Orange)	DSO

u-Link NT Program ECU P08 (BDM
