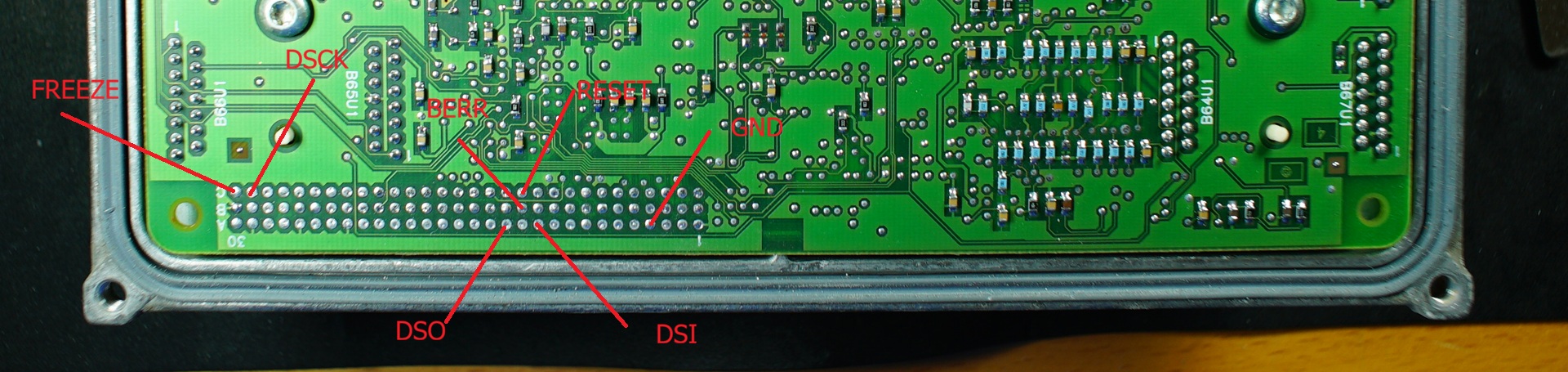

| ECU P59 BDM |
| BDM connection |
| BDM connector of USB BDMNT NT | BDM connector of u_link NT | ECU P59 |
| Pin 2 | Pin 4(Purple) | BERR |
| Pin 3 | Pin 2(White) | GND |
| Pin 4 | Pin 6(Green) | DSCLK |
| Pin 6 | Pin 3(Gray) | FREEZE |
| Pin 7 | Pin 5(Blue) | RESET |
| Pin 8 | Pin 10(Brown) | DSI |
| Pin 10 | Pin 8(Orange) | DSO |
