ECU SAAB 9-3 BDM

Master MC68377 Slave MC68F375

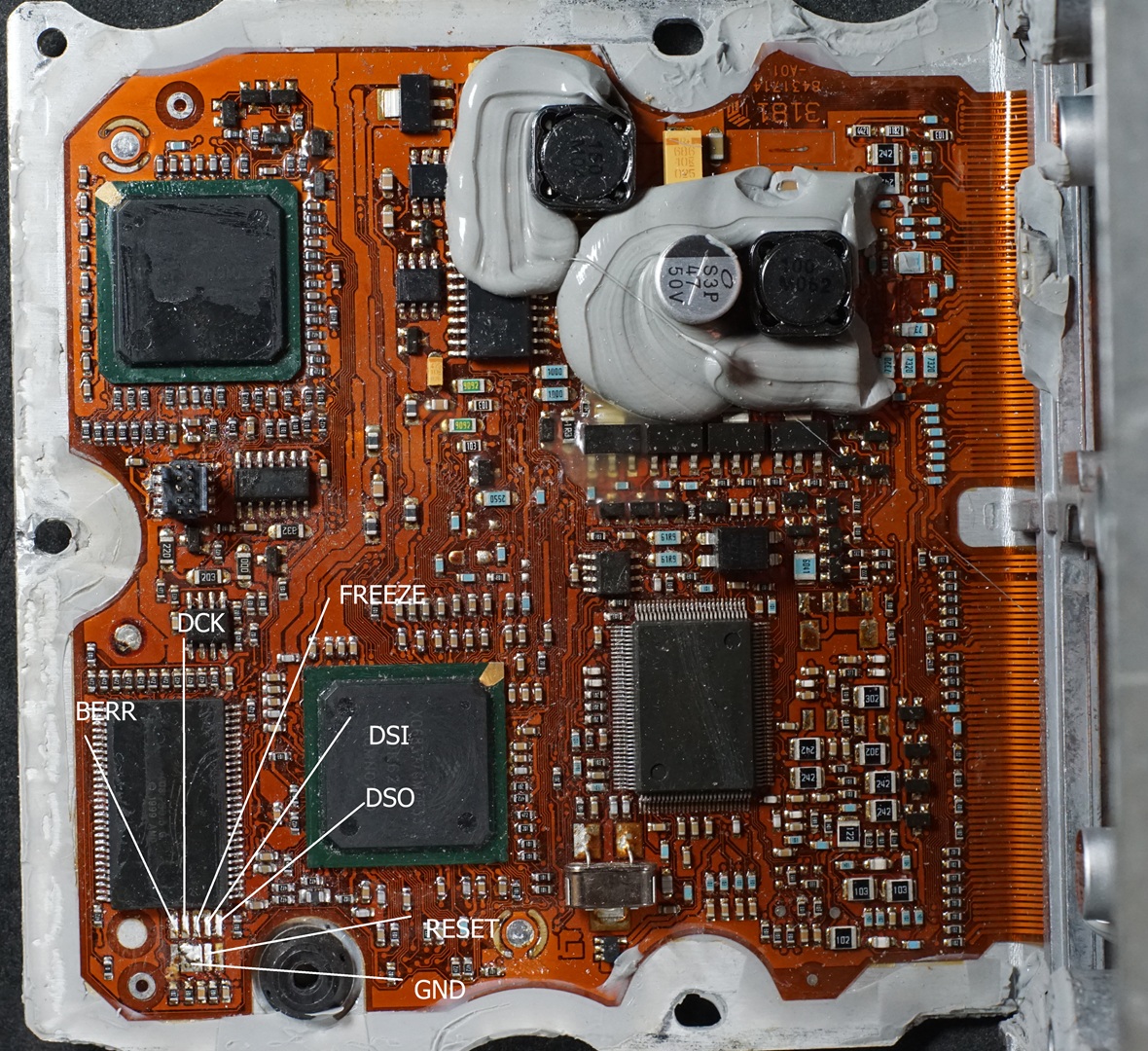

BDM connection

Connection

BDM connector of u_link NT	SAAB 9-3 ECU
Pin 4(Purple)	BERR (Do not connect for slave)
Pin 2(White)	GND
Pin 6(Green)	DSCLK
Pin 3(Gray)	FREEZE
Pin 5(Blue)	RESET
Pin 10(Brown)	DSI
Pin 8(Orange)	DSO
