| DCI105COM1 Cable box |

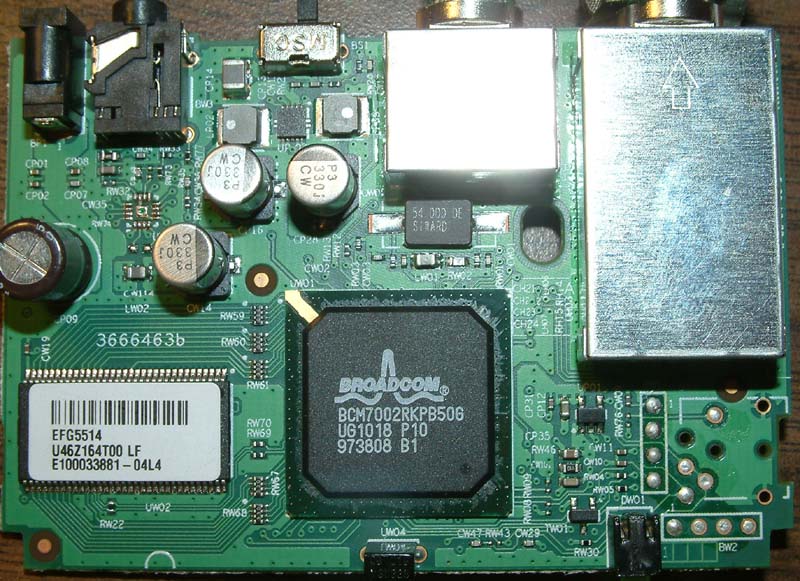

This little box has BCM7002 CPU. It employs 1M SPI flash.Use USB JTAG NT's can program the flash ISP.
| Front > |

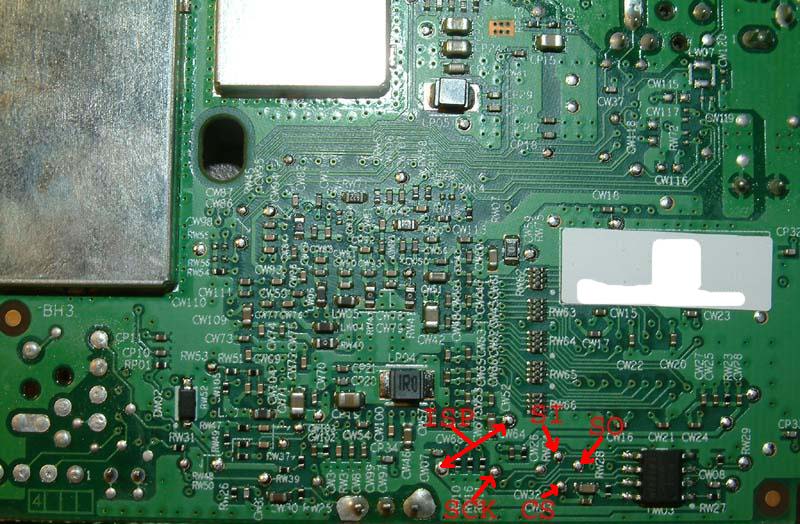

| The back of the PCB board. TWO ISP pin needs to conect when read/write flash. |
| JTAG connector of USB JTAG NT | Pin on the flash |
| Pin 3(TDI) | SI |
| Pin 5(TDO) | SO |
| Pin 9(TCK) | SCK |
| Pin 11(RESET) | CS |
| Pin 2(GND) | GND |
| Connect TWO ISP pin |
Def file TDCI105COM1.xml
Flash file flash.xml
