| DTA100/DTA101 Cable box |
This little box has BCM3545 CPU. It employs 2M SPI flash.Use USB JTAG NT's can program the flash ISP.It cannot use EJTAG but needs to solder pins to program the SPI flash
| Front > |

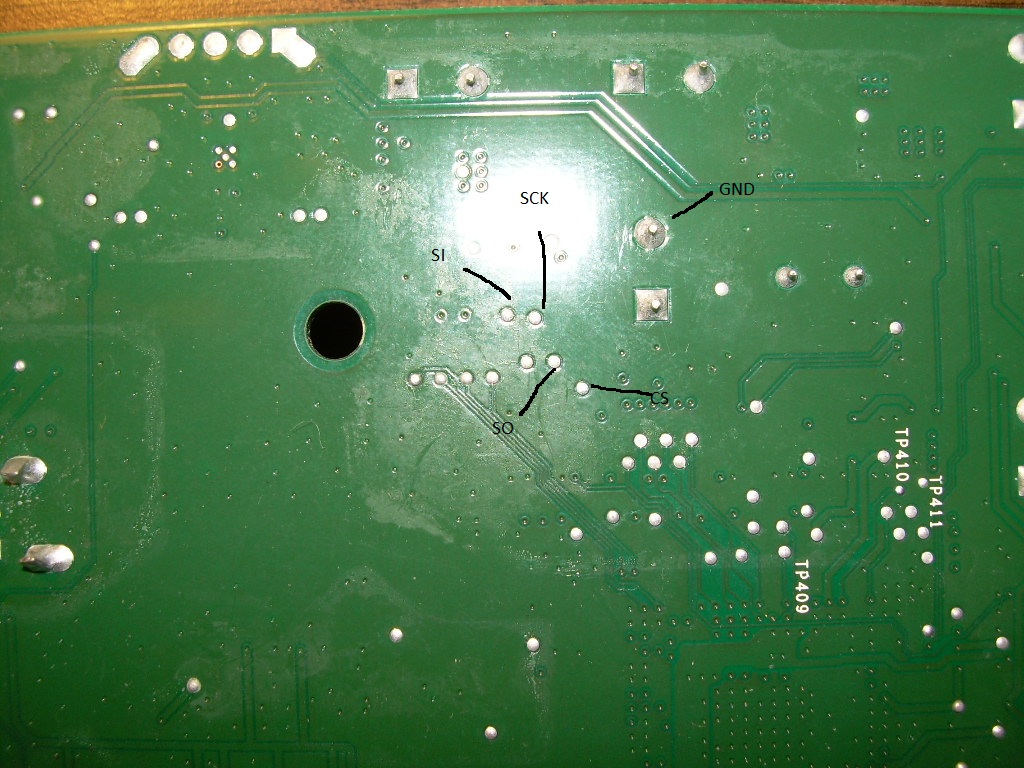

| You can solder the pins directly on the flash chip or solder pins on back of the PCB. There is no ISP pin needed. |
| JTAG connector of USB JTAG NT | Pin on the back of PCB | Pin on the flash |
| Pin 3(TDI) | SI | 5 |
| Pin 5(TDO) | SO | 2 |
| Pin 9(TCK) | SCK | 6 |
| Pin 11(RESET) | CS | 1 |
| Pin 2(GND) | GND | 6 |
| Connect external power |
Def file TDTA101.xml
