Sonicview 360 Premier

Sonicview 360 Premier use Conexant CX24303 CPU (ARM946)
Standard ARM 20 pin JTAG.
0.48 needed to program the flash. Serial number 4000 and earlier might not work on this model.

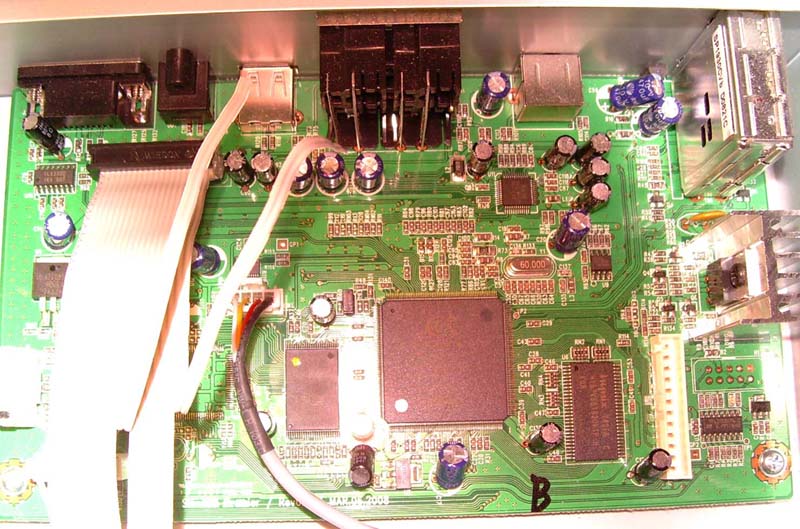

PCB

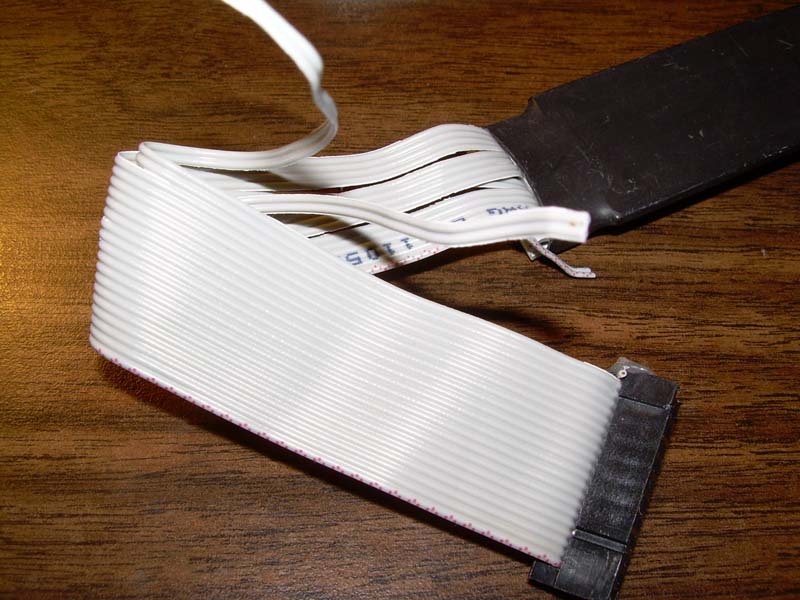

Convert cable made from old hard disk cable.
Flash 4MB 29L032N
Firmware 4MB $20000000-$203fFFFF

Connection
Name JTAG connector of USB JTAG NT ARM 20 JTAG
TRST 1 3
TDI 3 5
TDO 5 13
TMS 7 7
TCK 9 9
GND 2,4,6,8,10 2,4,6,8,10,12,14,16,18,20
