| Sonicview 8000HD |

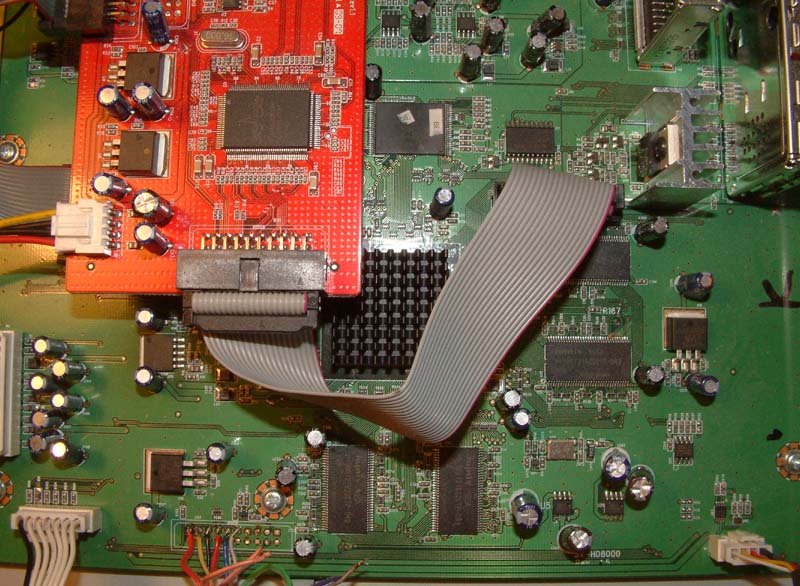

Sonicview 8000HD uses Sti7100 CPU )
20 pin JTAG.
0.55 needed to program the flash.
| PCB |
| JTAG |
| Flash | 16MB | 29GL128 |
| Name | JTAG connector of USB JTAG NT | Sonicview 8000HD 20 pin JTAG |
| TRST | 13(Do no tuse pin 1 of JTAG NT) | 19 |
| RESET | 11 | 17 |
| TDI | 3 | 13 |
| TDO | 5 | 15 |
| TMS | 7 | 9 |
| TCK | 9 | 11 |
| GND | 2,4,6,8,10 | 2(4,6,8,..) |
