Motorola VT1005

VT1005 has two Phone Ports. This is made for Vonage only.
The CPU of the board uses TNETV10552. The tool to debug the CPU is EJTAG (NonDMA).

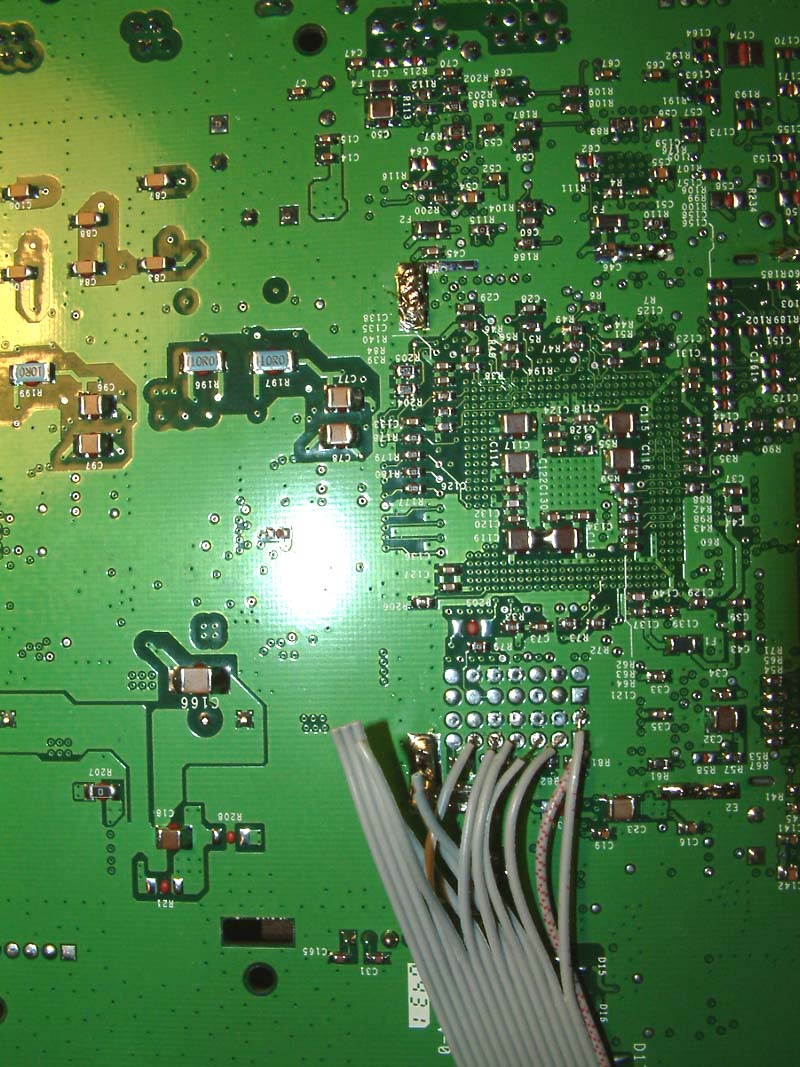

Picture showing JTAG pin soldered. (Need to remove the metal plate)

Flash 8MB 28F640
Firmware 8MB $90000000-$907FFFFF
