Linksys PAP2 V2

Linksys PAP V2 with two Phone Ports. This is made for Vonage only.
The CPU of the board uses TNETV10552. The tool to debug the CPU is EJTAG (NonDMA).

Picture showing the PCB and JTAG

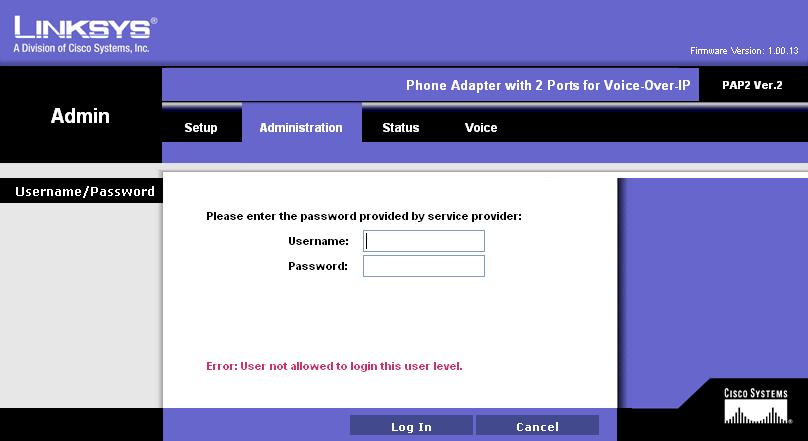

Picture showing the page that is locked
Picture showing the page that is unlocked

Flash 8MB 28F640
Firmware 8MB $90000000-$907FFFFF



Definition Commands (usbjtag NT 0.34a and up,CYT.dll 0.05):
TPAP2V2.xml

Backup firmware
getram 90000000 800000
save 9fc00000 800000
Program the firmware
detect
ldram boot (file backed up) program 90000000 800000

Use 0.05 and up can unlock the this device's password so the VOIP setting is possible. Refer to VT2x42 unlock.
