SB5101 Cable modem

Motorola SB5101 surfboard
The CPU of the board uses BCM3349. The tool to debug the CPU is EJTAG (DMA).

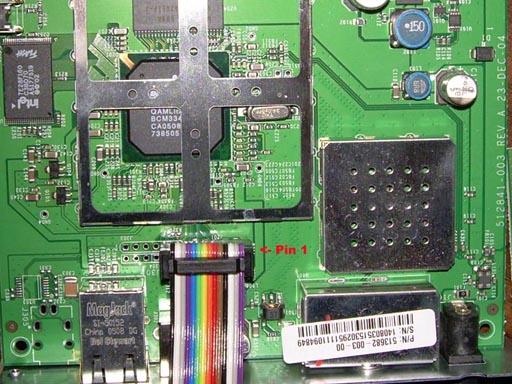

Picture showing JTAG is connected
Flash One 2MB 28F160C3
Firmware 2MB $9FC00000-$9FDFFFFF
RAM 16MB $80000000-$81000000

To program sb5101 please visit http://www.usbjtag.com/jtagdevices/sb5100.php
