Linksys WRT54GL V1.1 router

Linksys WRT54GL V1.1 Router.
This router use 12 pin EJTAG port. For USBJTAG NT, connect the first 12 pins.
The CPU of the board uses BCM47XX. The tool to debug the CPU is EJTAG (DMA).

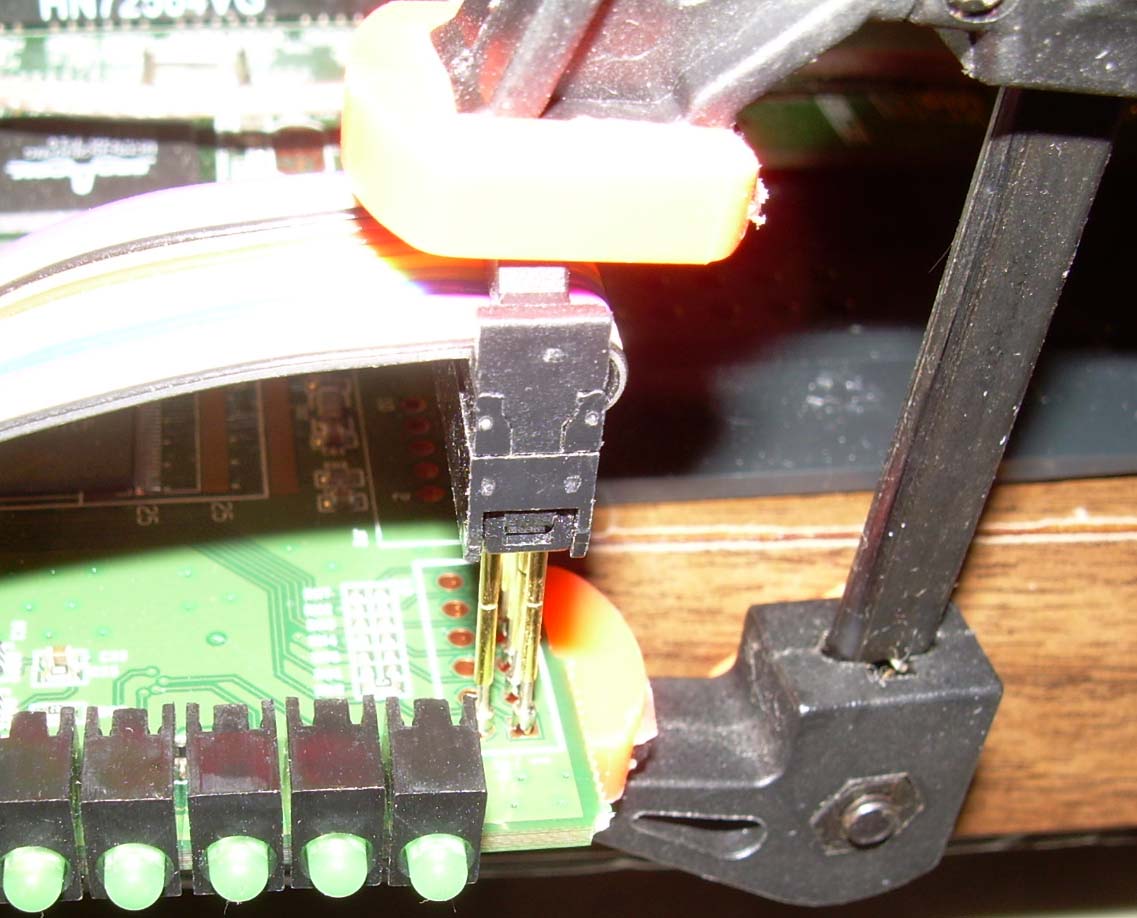

Picture showing the board with JTAG clamped on.
Close look of the JTAG

For programming WRT54G V2
